06 Portable boxing bands
May 2019
Polyester vinyl, polyester mesh, neoprene & rubber band
Polyester vinyl, polyester mesh, neoprene & rubber band

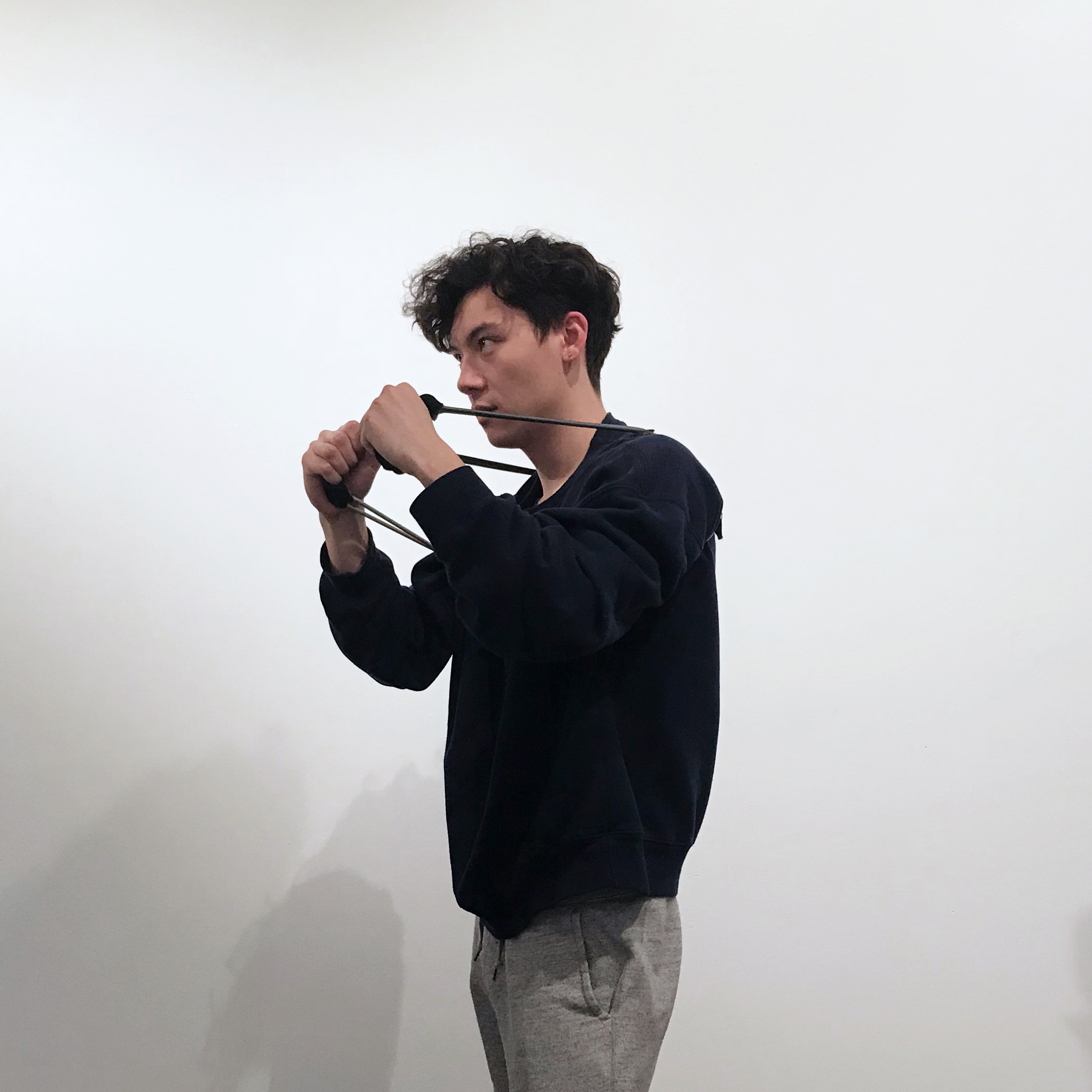

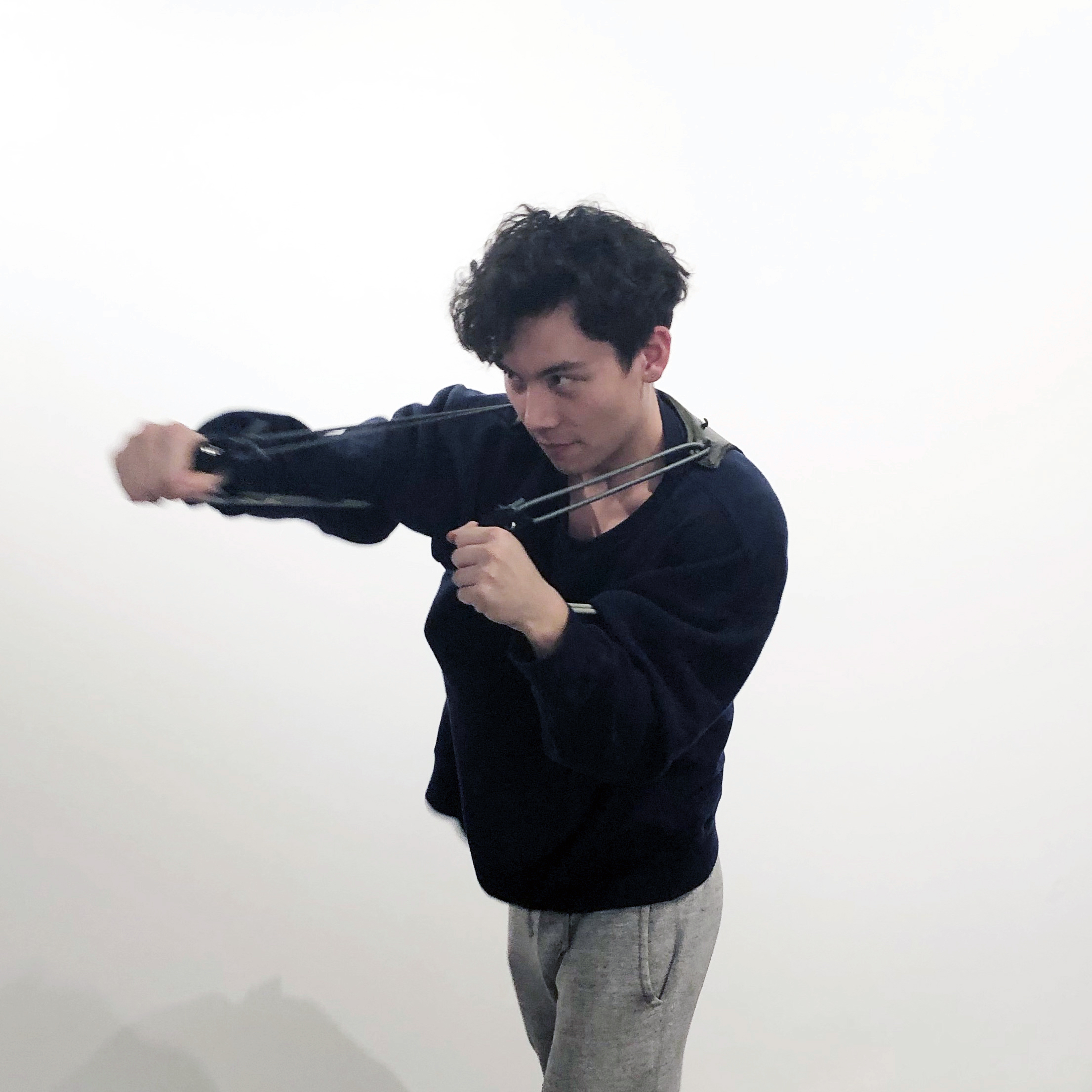

Inspired by the Frog’s specific tongue movement, the portable boxing band is designed to allow the user to practice the action of boxing wherever and whenever they want. The device is made of sport bands which are attached to the backpiece which allow the user to strengthen the arms as well as improving boxing techniques. The backpiece is made of neoprene which is a breathable sporting material and its stability aids the boxer to stand upright.
Collaboration with Fernando Diaz and Katerina Nordgaard.

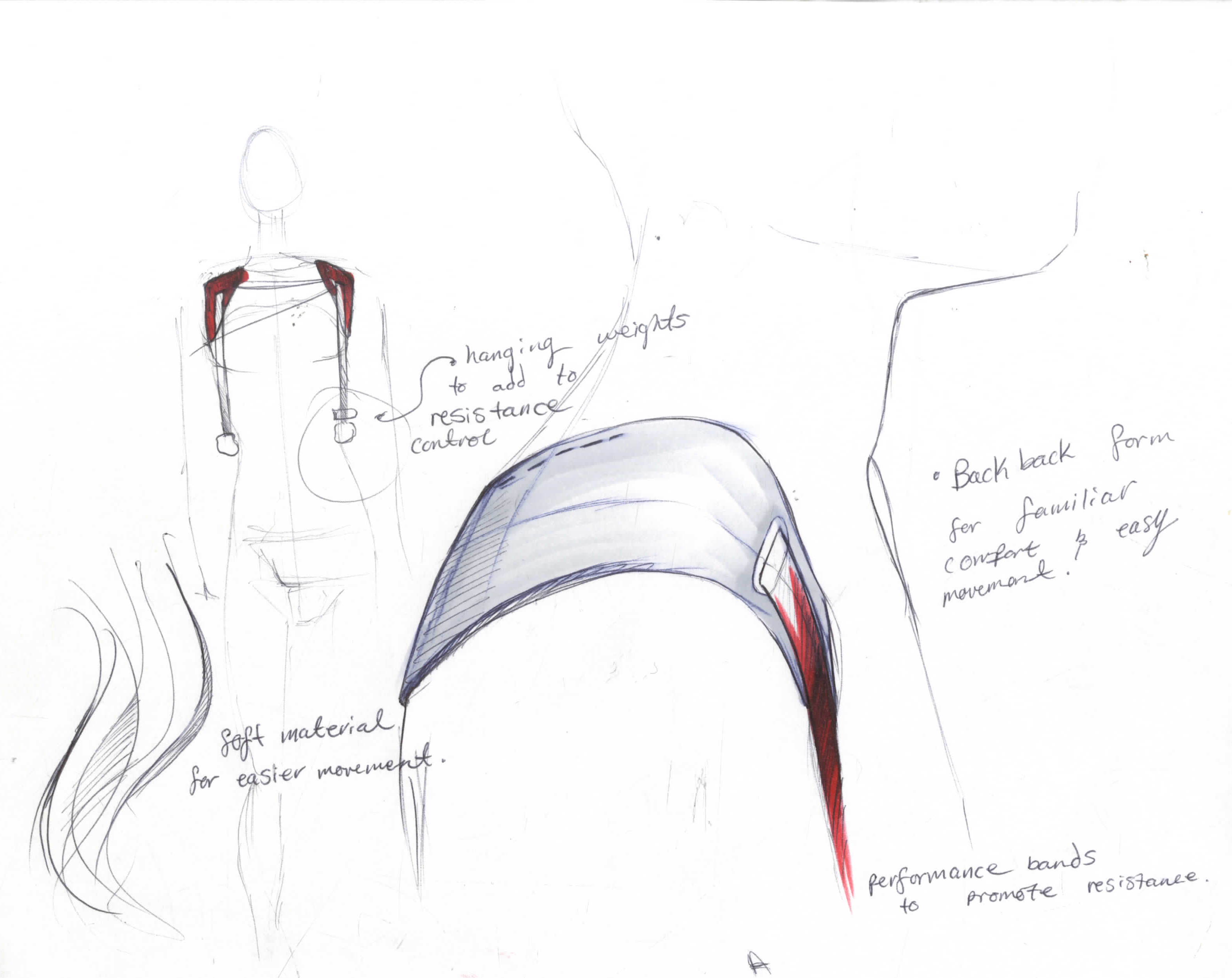

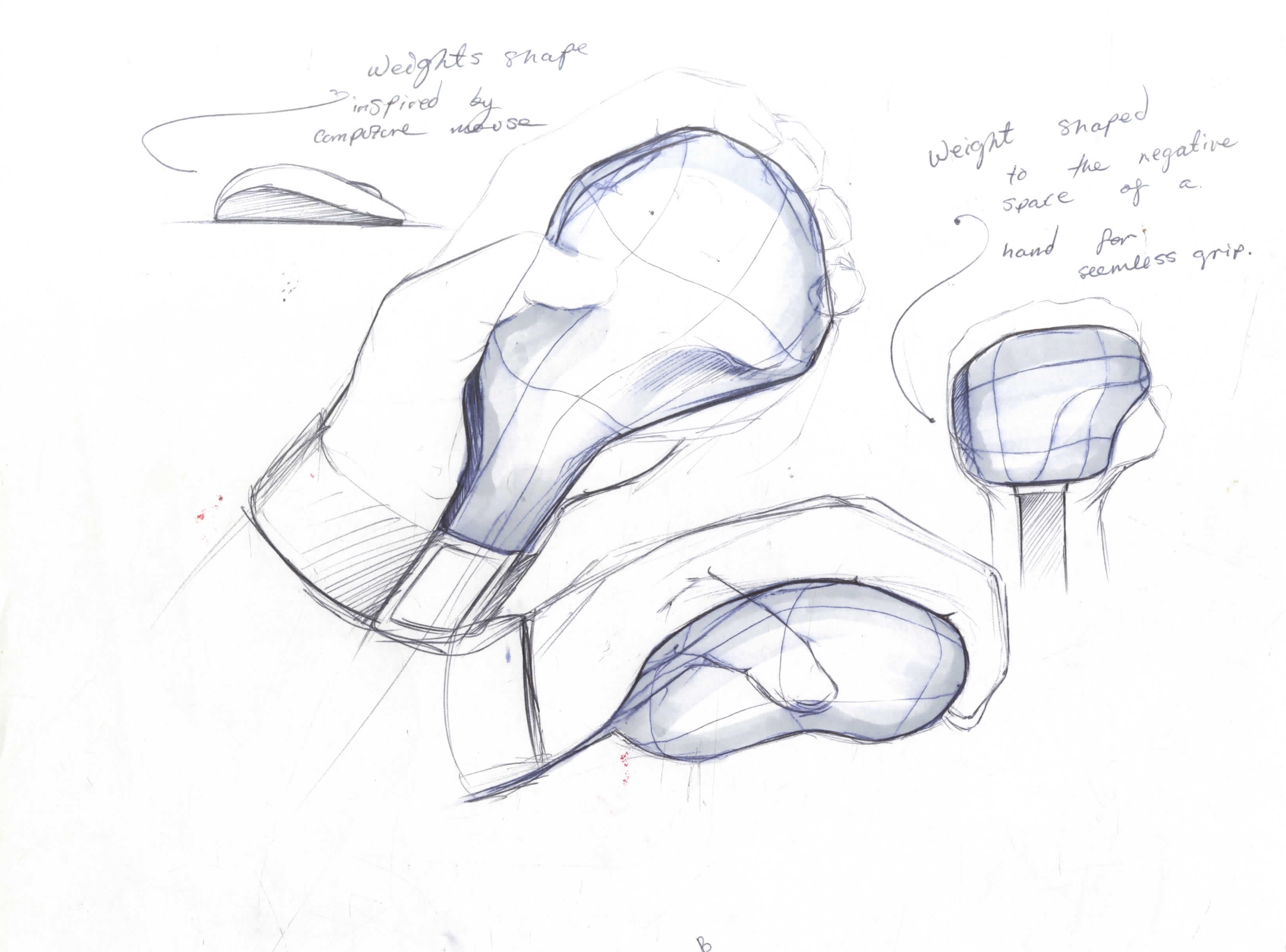

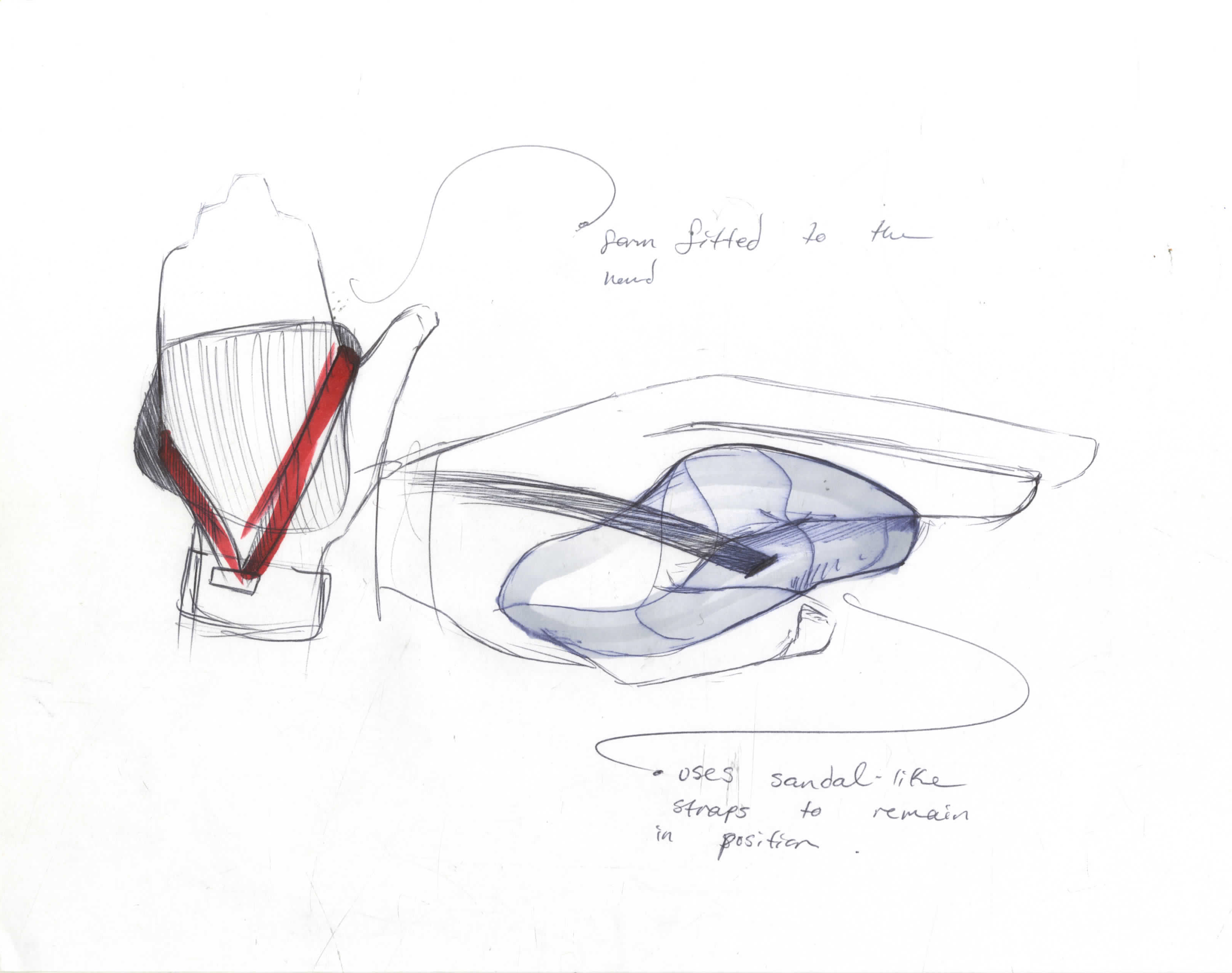

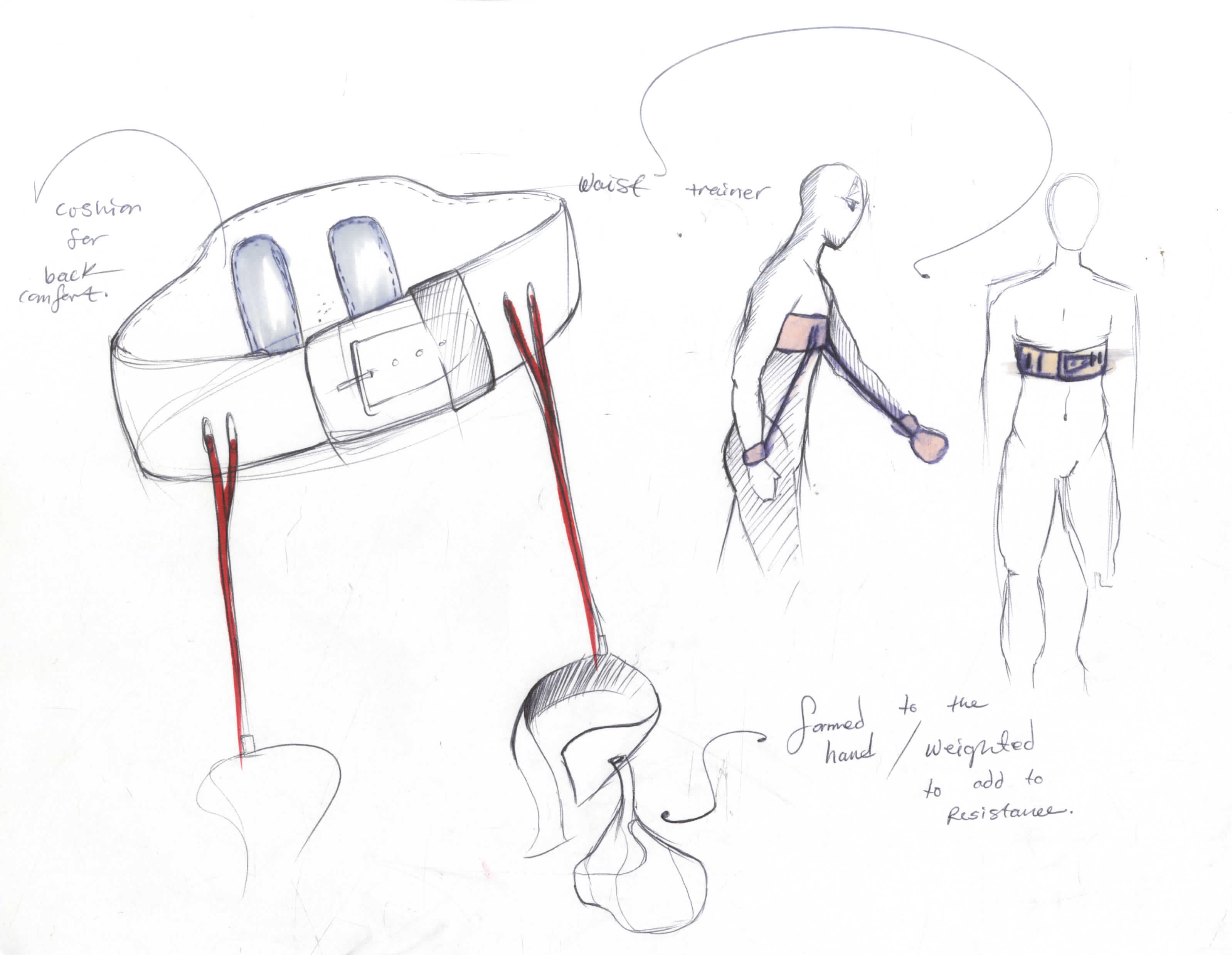

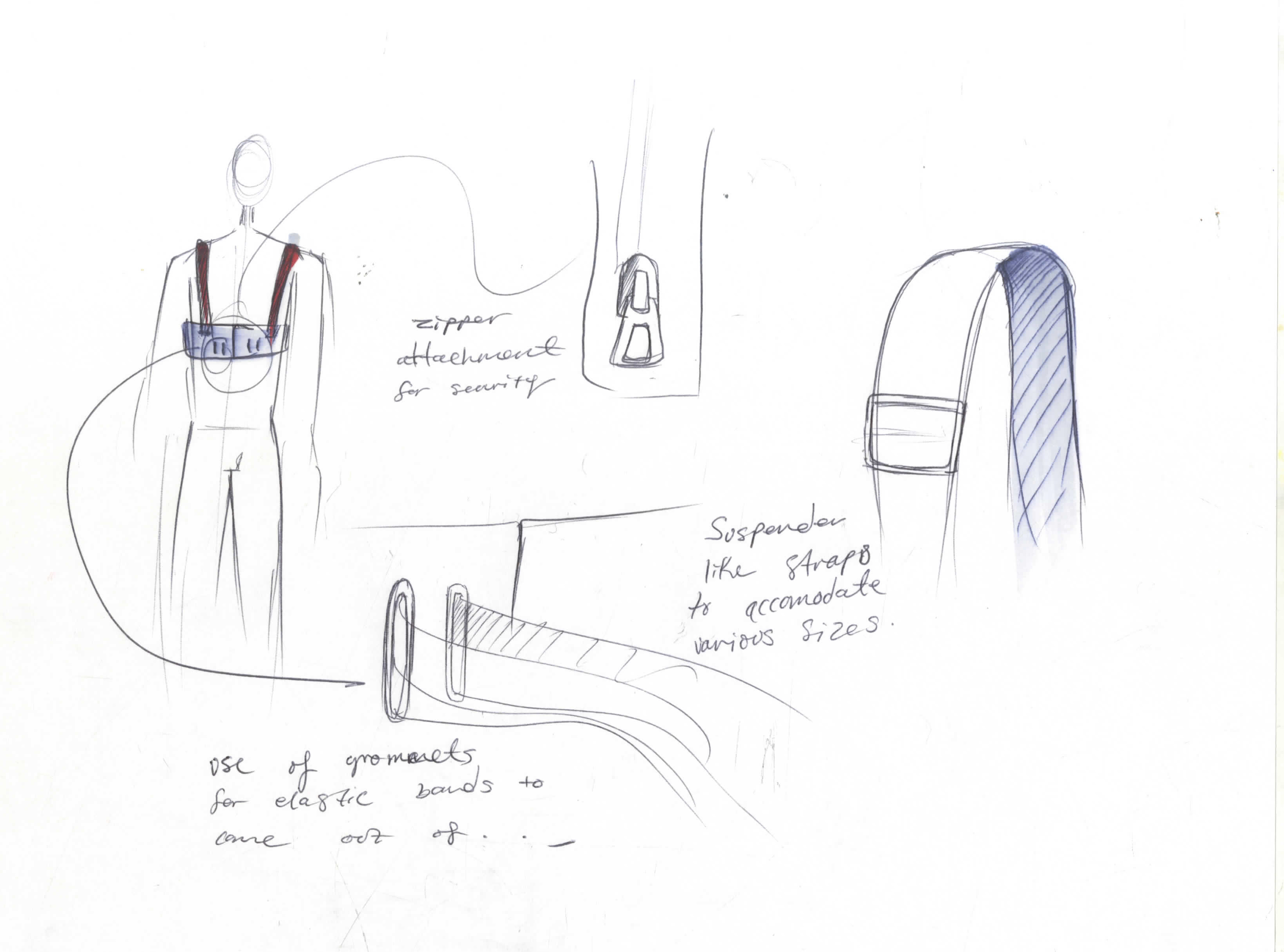

Ideations

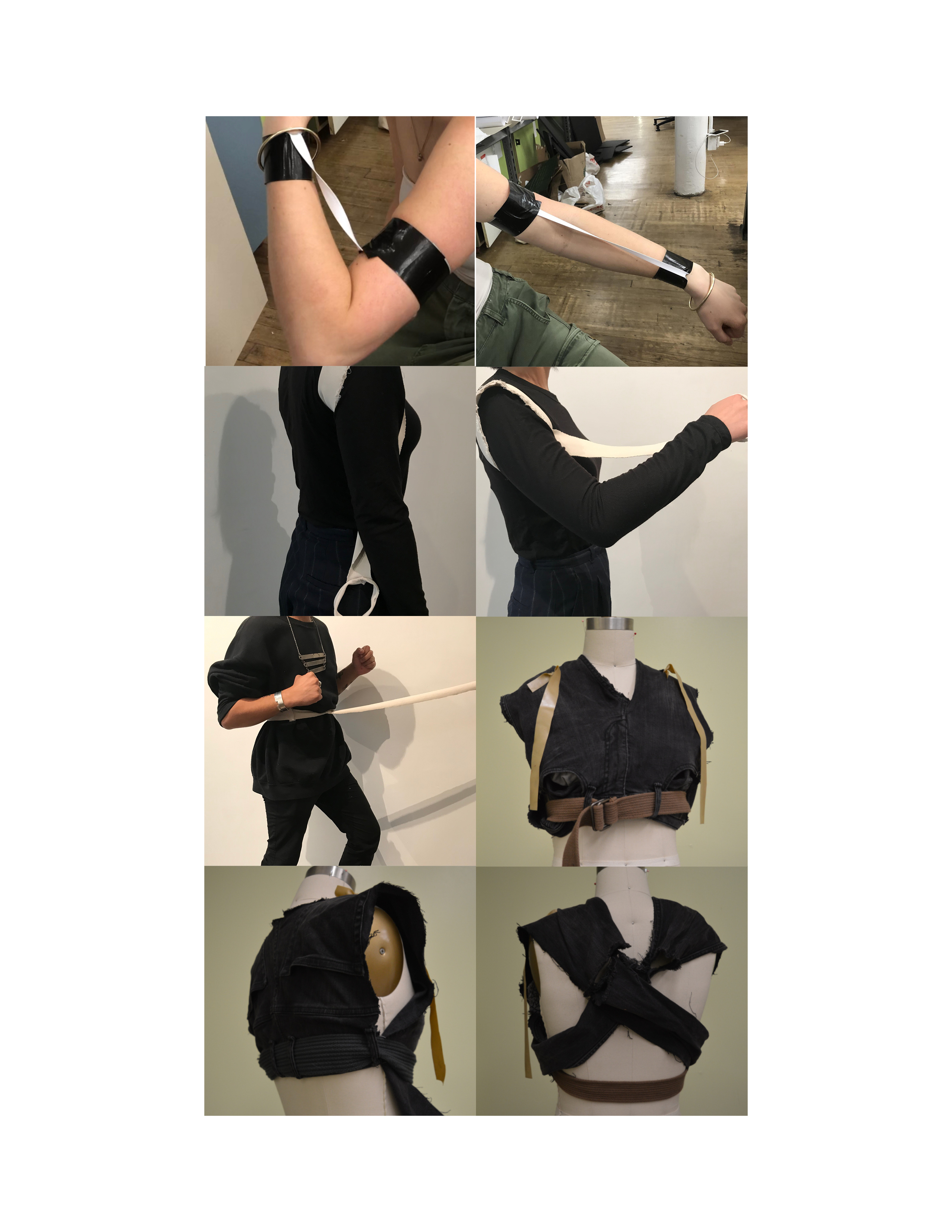

First prototype
The first prototypes that we made are to test out the “retraction” idea and the placement of the bands, so we made multiple prototypes with different materials for testing.

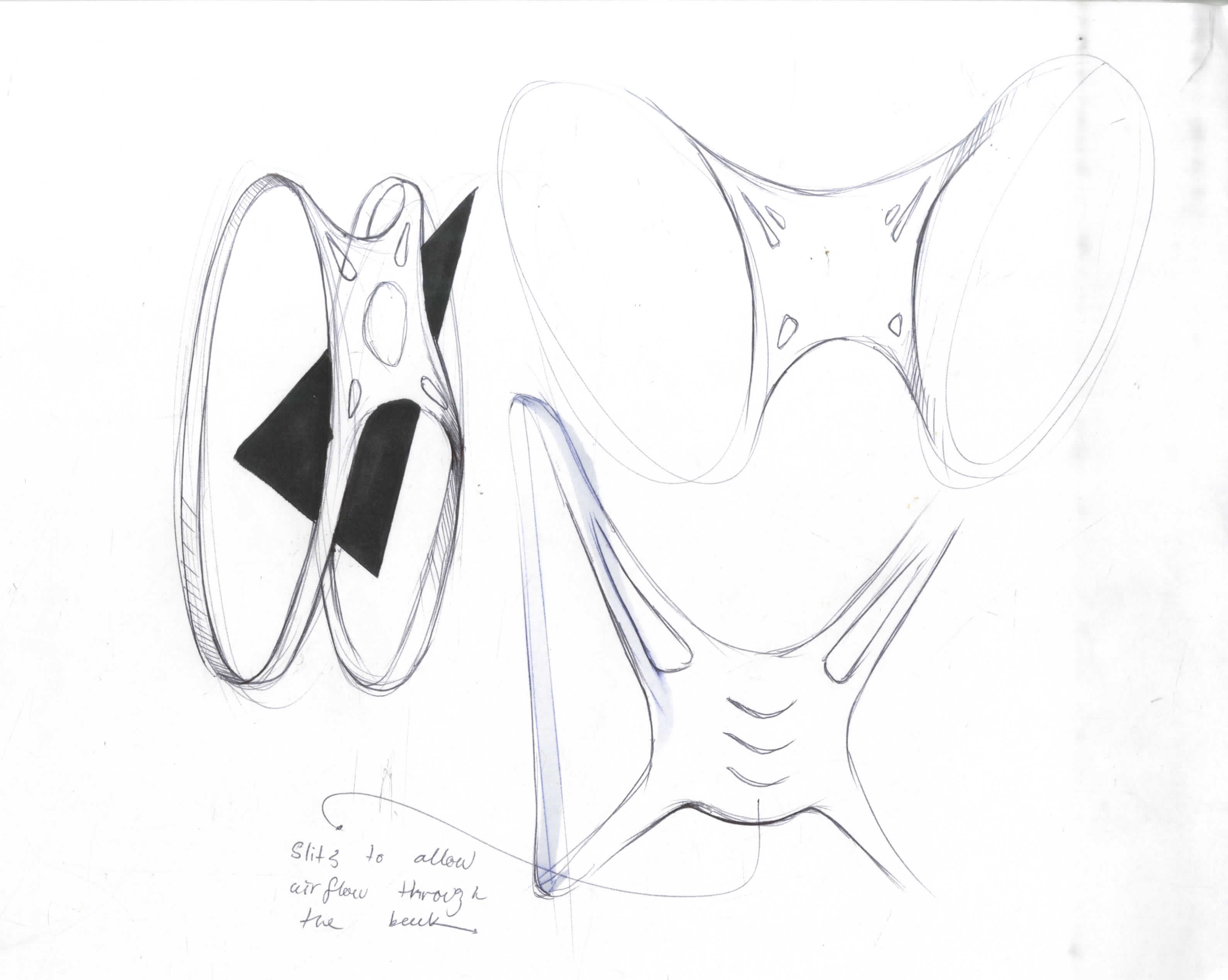

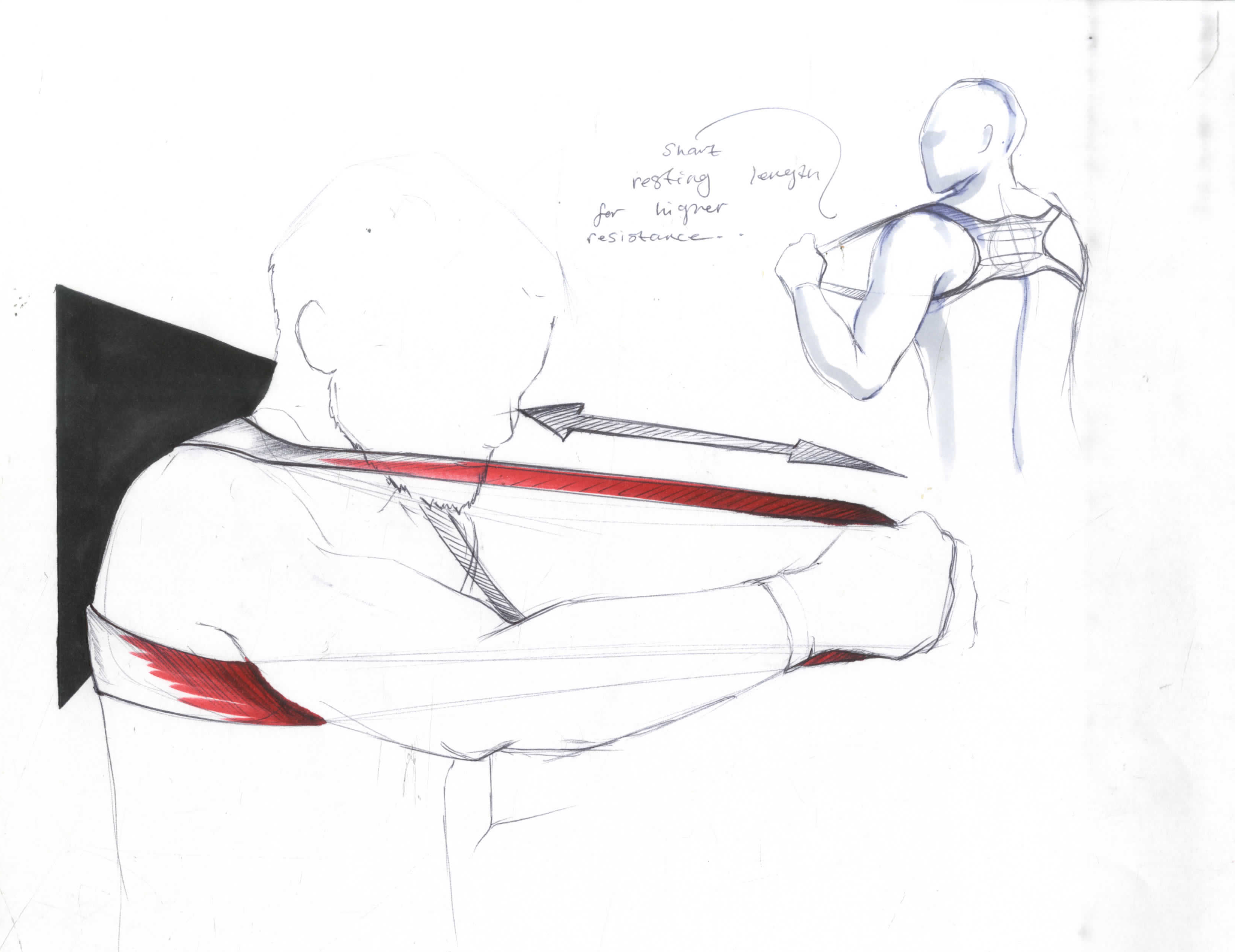

Improved drawings

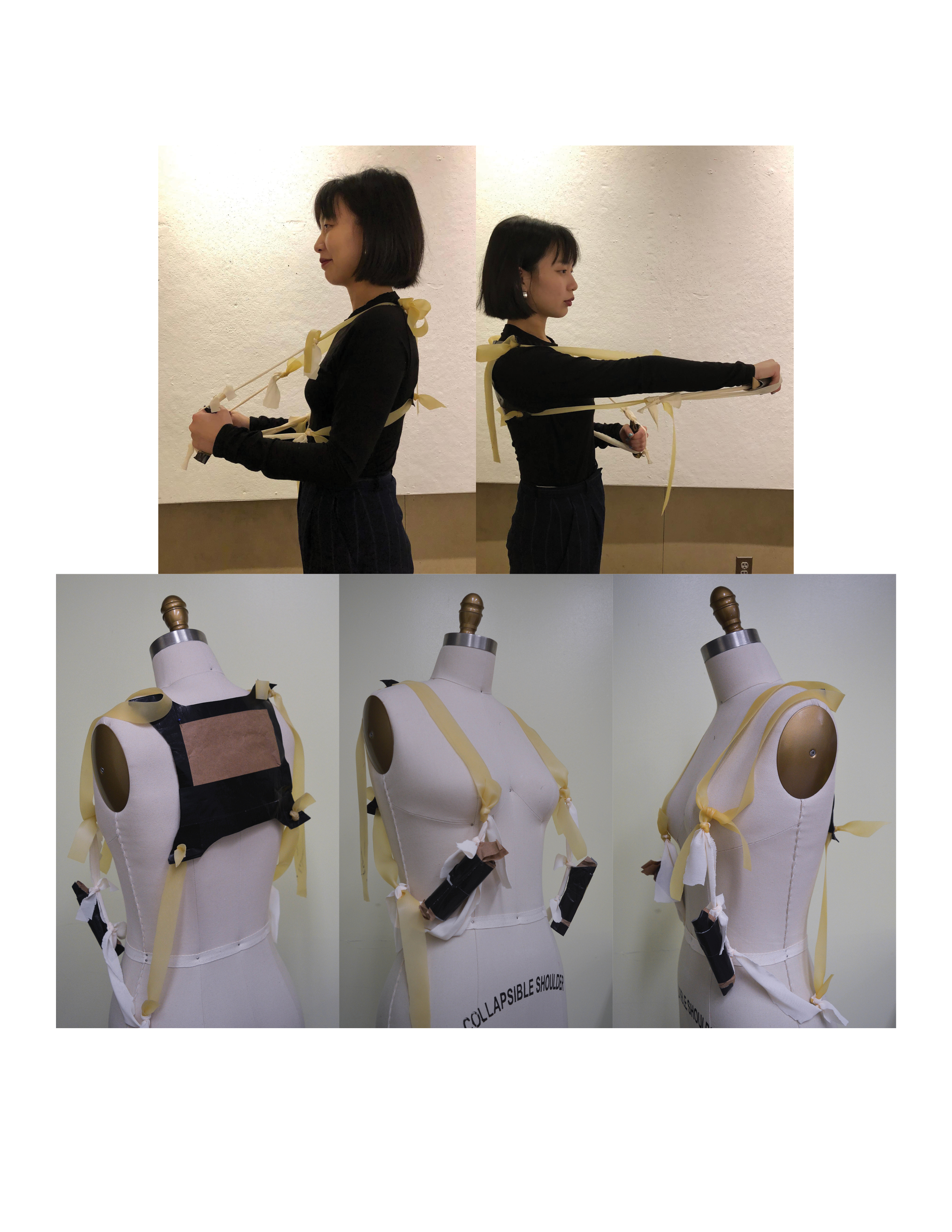

Improved prototypes
We decided on the basic form of our design and tried to fabricate it with one piece of fabric. The fabric is elastic and comfortable enough, however, this design doe not stablize shoulders and needs a better mechanism.
We improved our design by deciding to use two different materials. The arm part will be fabricated in any rubber/elastic material (we used latex in this one), and the backpiece will be fabricated in any sporting material.

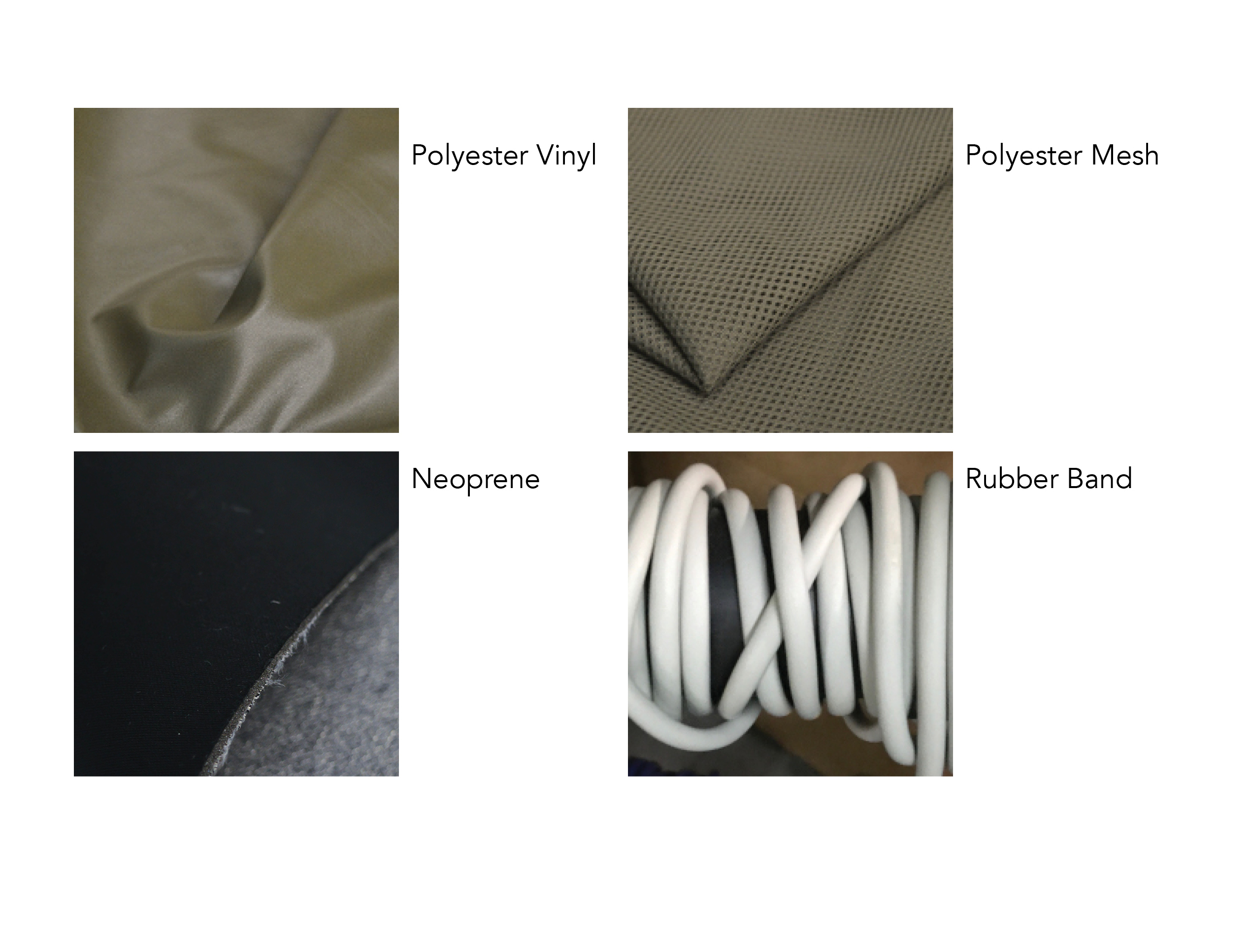

Materials and fabrication

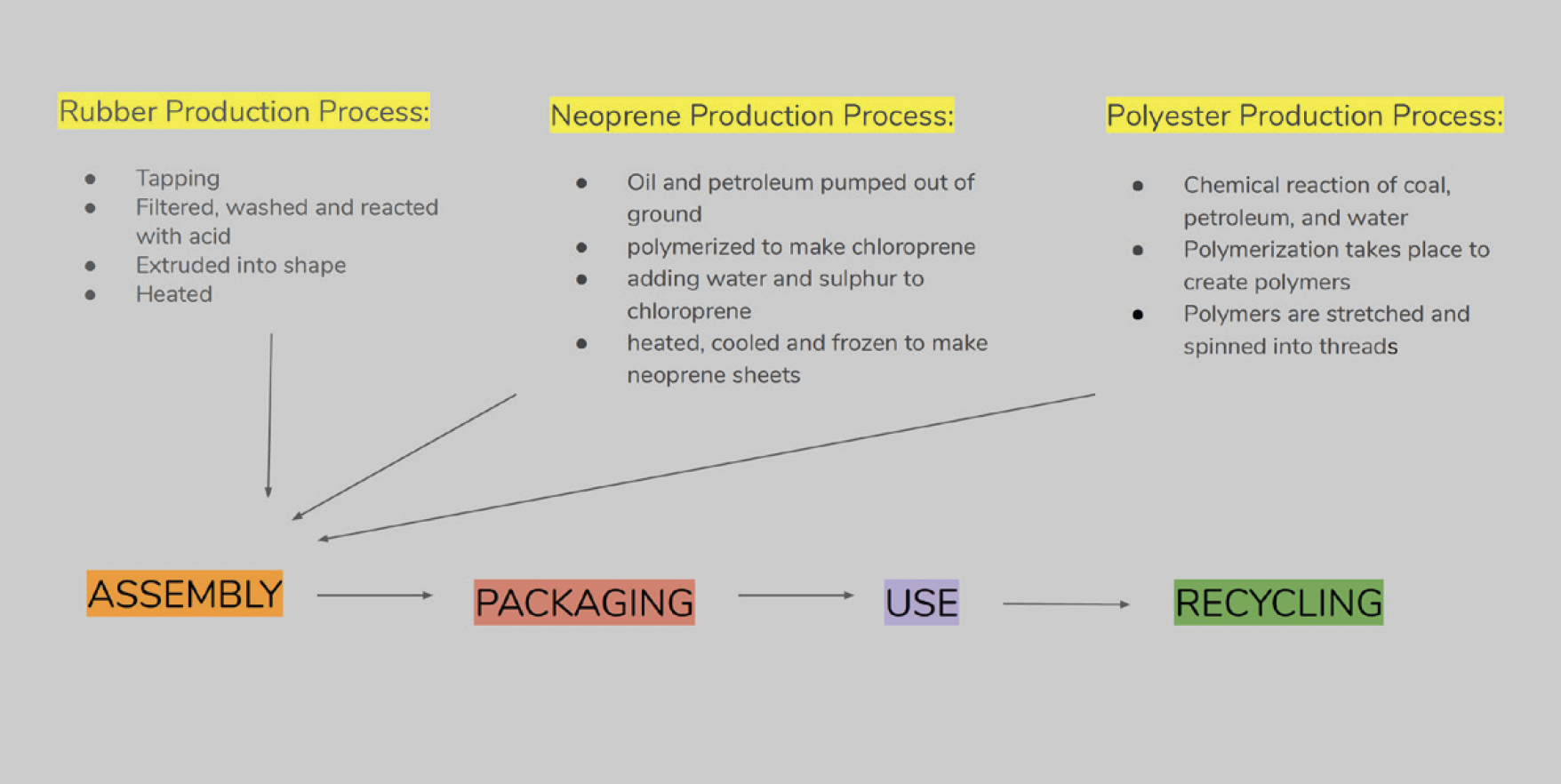

Process tree

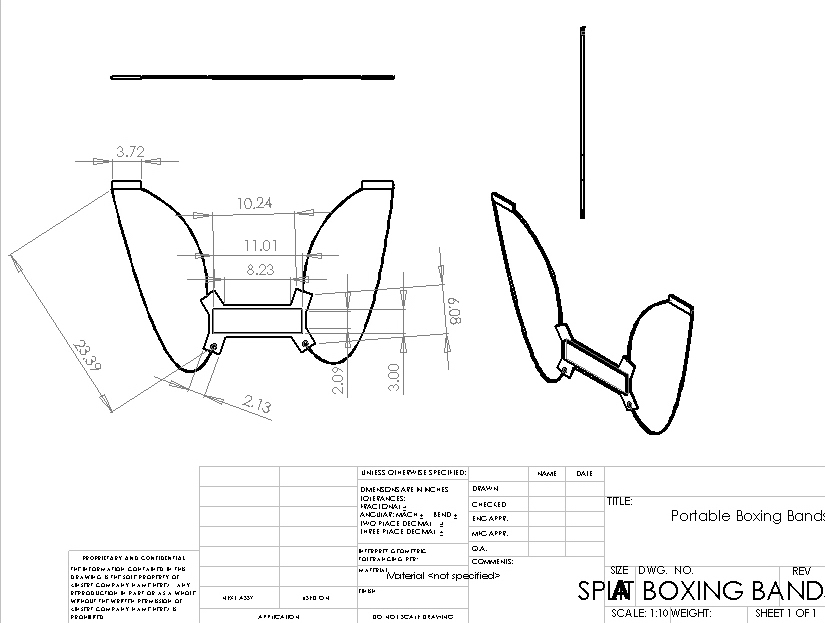

Rendering and technical drawing
